New

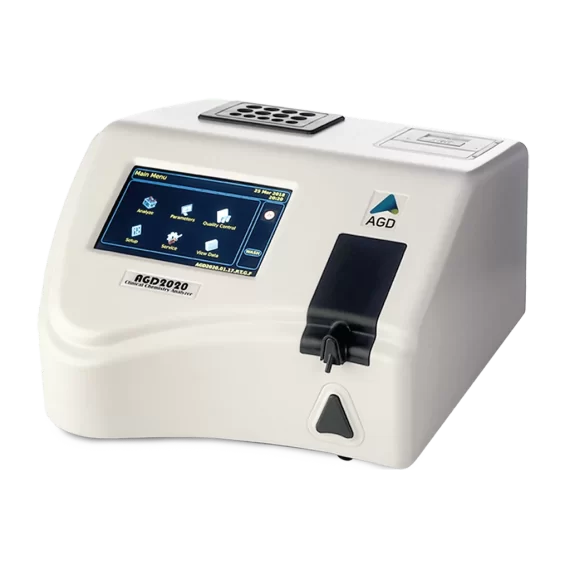

AGD 2020 Semi-Automatic Clinical Chemistry Analyzer
Product Features:
- 7″ graphic resistive touchscreen colour display
- Online reaction Curve
- Collated Patients Reports
- 3 Level Quality Control with L-J plot
Technical Specifications:
| Parameter | Description |
|---|---|
| Assay Types | Absorbance, End point, Kinetic, Fixed Time, Endpoint with Sample Blank and Coagulation |
| Wavelength | 7 Filters: (340nm, 405nm, 505nm, 546nm, 578nm, 630nm, 670nm) and provision to add 1 filter ± 10nm |
| Bandwidth | 10nm ±2nm |
| Absorbance Range | -0.1 to 3.000 Abs |
| Flow Cell | 18µL / 32µL |
| Aspiration Volume | 0.2mL to 1.0mL |
| Cuvette | Semi Micro Cuvette |
| Cuvette Volume | 2.5 mL |
| Memory | 196 programs, 5000 test records with Reaction Curve |
| Light Source | 6V/10W, Tungsten Halogen Lamp |
| Temperature Control | 25, 30 & 37° C by Peltier Effect |
| Quality Control | L-J Plot of Tri-level control with daily and monthly data |
| Display |
|
| Built-in Printer | 2″ Graphic Thermal Printer (can be switched ON/OFF, when desired) |
| Interface | Two USB ports for External Keyboard/ Mouse |
| Operating Condition |
|
| Storage Condition | 10°C to 40°C, Altitude: Below 3000 Meter |
| Inbuilt Incubator | Incubator for 8 test tubes & 5 coagulation tubes – Optional. |
| Battery Back-up | Battery back up for the instrument – Optional. |
| Dimension | 360mm (L) x 355mm (B) x 170mm (H) |
| Weight | 6.6 Kg |
| Power Consumption | 50 Watts |
| Power Supply | 100 to 240 VAC ±10%, 50/60 Hz |
| Calibration curve | Linear, Multipoint and non-linear calibration upto 6 standards with calibration curve like cubic spline, exponential, parabola etc. |
* Specifications are subject to change without prior notice.
Description
AGD 2020
Semi-Automatic Clinical Chemistry Analyzer
AGD 2020 is a compact, convenient, new generation analyzer most suitable for medium and small sized laboratories, also as a backup for large laboratories or hospitals.
