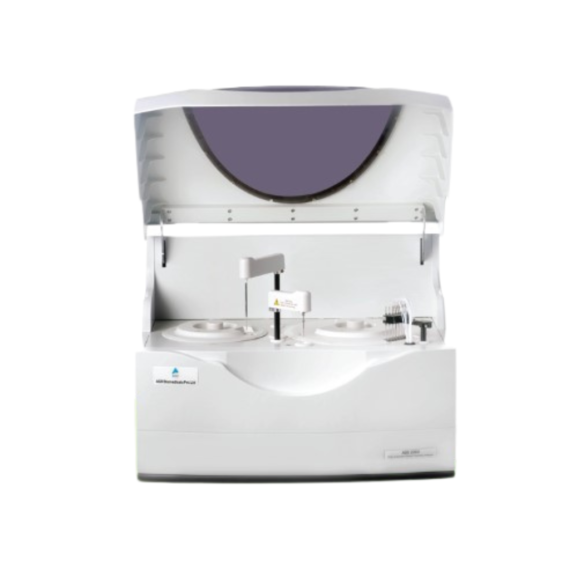

AGD 2260 Fully Automatic Clinical Chemistry Analyzer

Product Features:

Technical Specifications:

Parameter	Description
Throughput	Up to 200 tests per hour
Methodology	Measuring principles: Absorbance photometry, Turbidimetry ,End-point, Two-point, Kinetic,/Dual/ reagent chemistries,monochromatic /bichromatic
Sample Arrangement	40 positions for sample, STAT, Calibrator, and QC Sample volume : 2-50μL,step by 0.1μL Compatible with primary collection tube, sample cup, etc
Reagent arrangement	40 reagent positions for R1 and R2 Volume range : 10-500μL, step by 1μL Reagent Probe : Liquid level detection, collision protection function On board cooling ( 2°c- 8°c )
Laundry system	Needles : 8 step washing sequence. Water Consumption : Upto 4 l/hr
Reaction system	90 Special cuvettes Length of cuvette : 6mm Cuvette Volume : 300μL Reaction volume : 200μL to 500μL Reaction time : 8 – 15 mins Reaction temperature : 37 ± 0.5°C
Working Conditions	Power supply : AC100-240V, 50-60Hz 1 KVA Dimensions : 700mm (W) 650mm (L) 530mm (H) Net Weight : 55.4
Operating configuration	Operation system Windows 10 or XP Interface RS-232 Memory Upto 200,000 patient data Temperature 10°c-35°c Humidity upto 90% with no dew LIS – Bidirectional
Optical system	9 wavelengths : 300-700nm Tungsten halogen lamp Absorbance range : 0-4.00Abs Spectrophotometry; rear spectrophotometry
Mixing system	Independent mixing probe
